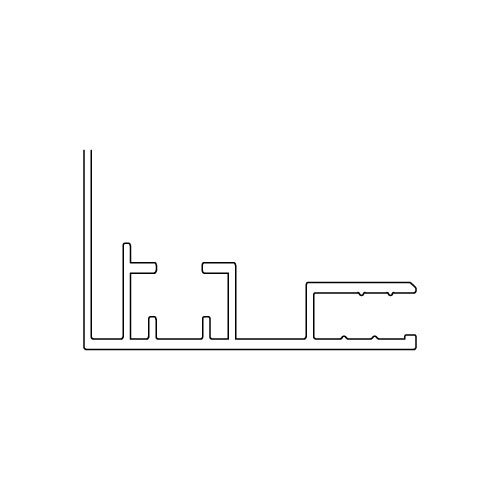

M9242 cross-section drawingSECTION · NOT TO SCALEM9242

M9242

M9242 is one of the aluminum profiles in A-Aluminyum’s Lightbox Profiles group. Download its cross-section drawing as a PDF to check the dimensions and request a quote for length, finish and quantity.

TECHNICAL DRAWINGS · 1
FinishRAL powder coating
LengthUp to 6 m
Custom productionDie archive 22,000+

About Lightbox Profiles

See all products

Lightbox profiles form the frame of backlit display panels. With fabric (tension) graphics or poster systems they produce large, evenly lit visuals for shops, trade fairs and interior advertising.

APPLICATIONS

  • Backlit panels in shops
  • Trade fair stands
  • Wall-mounted and suspended light boxes
  • Single- and double-sided displays

SPECIFICATIONS

Alloy
6063 / 6060
System
Fabric (tension) graphic channel, LED mounting surface
Finish
Mill finish or RAL electrostatic powder coating (QUALICOAT)
Length
Up to 6 m in one piece; cut to size

FREQUENTLY ASKED QUESTIONS

Where can I download the technical drawing?

Every product page has the cross-section drawing of the profile as a PDF. Check the dimensions and give the profile code in your quote request.
