Dies

Dies and production to your drawing. Download the cross-section drawing of each profile and request a quote in the length and color you need.

2profiles
PDFtechnical drawing

About Dies

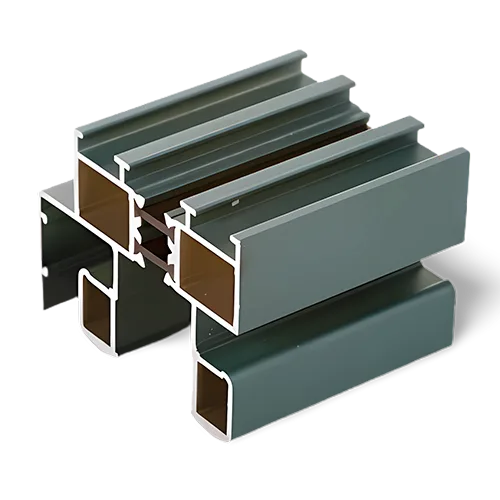

If you cannot find the section you need in the catalog, we produce the profile to your drawing. We first look for a similar die in our archive of more than 22,000 dies; if there is none, a custom extrusion die is designed for you and put into production.

APPLICATIONS

  • Profile sections made for your product
  • Re-making an existing part in aluminum
  • System profiles such as roll-up and display stands

SPECIFICATIONS

Drawing
PDF, DWG or DXF cross-section drawing; a measured sample also works
Archive
22,000+ dies
Alloy
1xxx, 5xxx, 6xxx series and special alloys
Finish
Mill finish or RAL electrostatic powder coating (QUALICOAT)
Length
Up to 6 m in one piece; cut to size

FREQUENTLY ASKED QUESTIONS

What should I send for a custom die?

The cross-section drawing of the profile (PDF, DWG, DXF) and the estimated annual quantity. Without a drawing we can also work from a measured sample.

How long does a custom die take?

It depends on the complexity of the section; designing and making a new die usually takes a few weeks. If a suitable die exists in the archive, production can start right away.
